Fosi Audio ZD3 Bluetooth USB Desktop DAC ARC Input, ES9039Q2M Fully Balanced Digital Decoder for Stereo Amplifier with Remote

Fosi Audio ZD3 Bluetooth Desktop DAC Preamp ARC Input, ES9039Q2M Fully Balanced Digital for Home Stereo Amplifier with Remote

Description

• Flagship Desktop DAC: A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio’s first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound

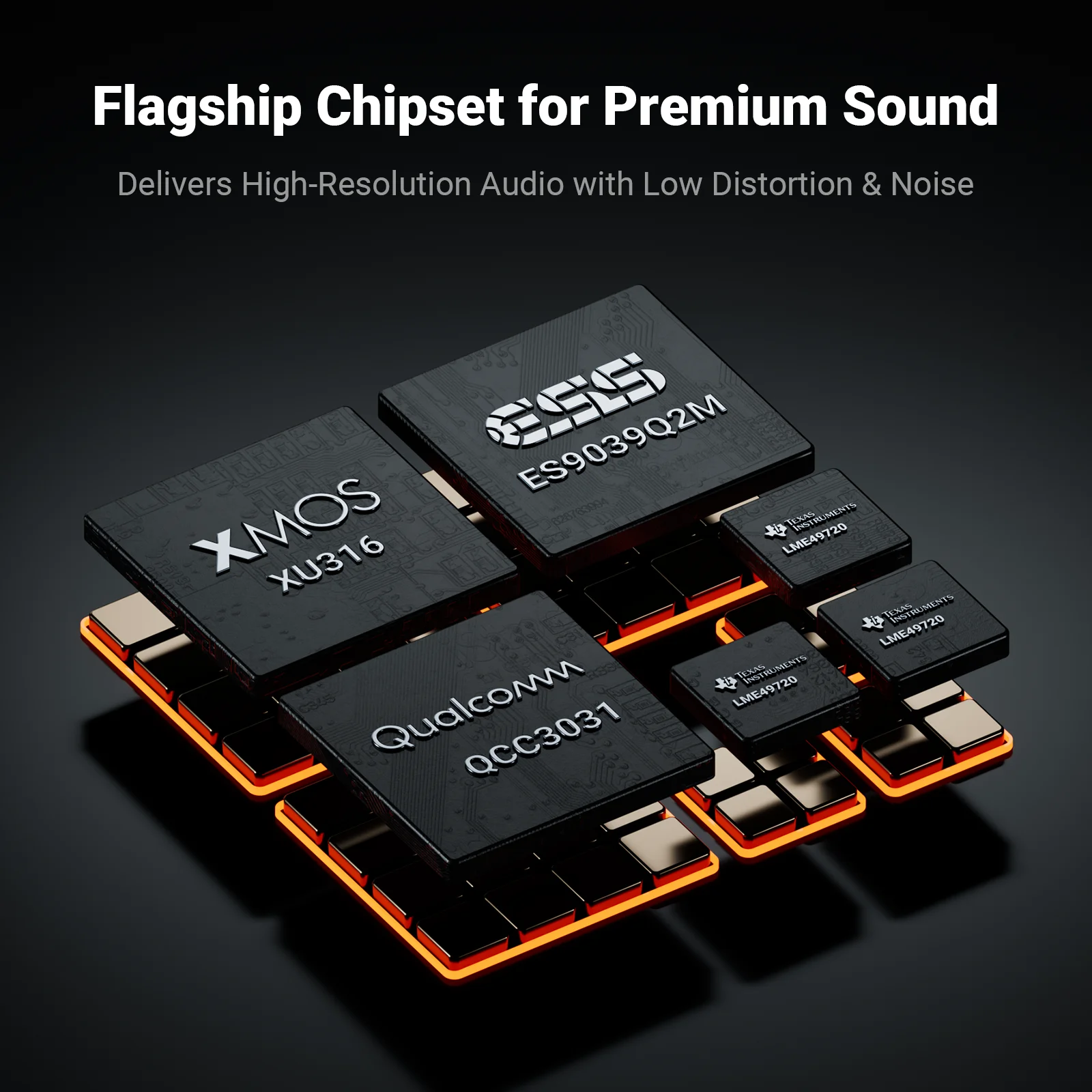

• Premium Chipset: The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth.

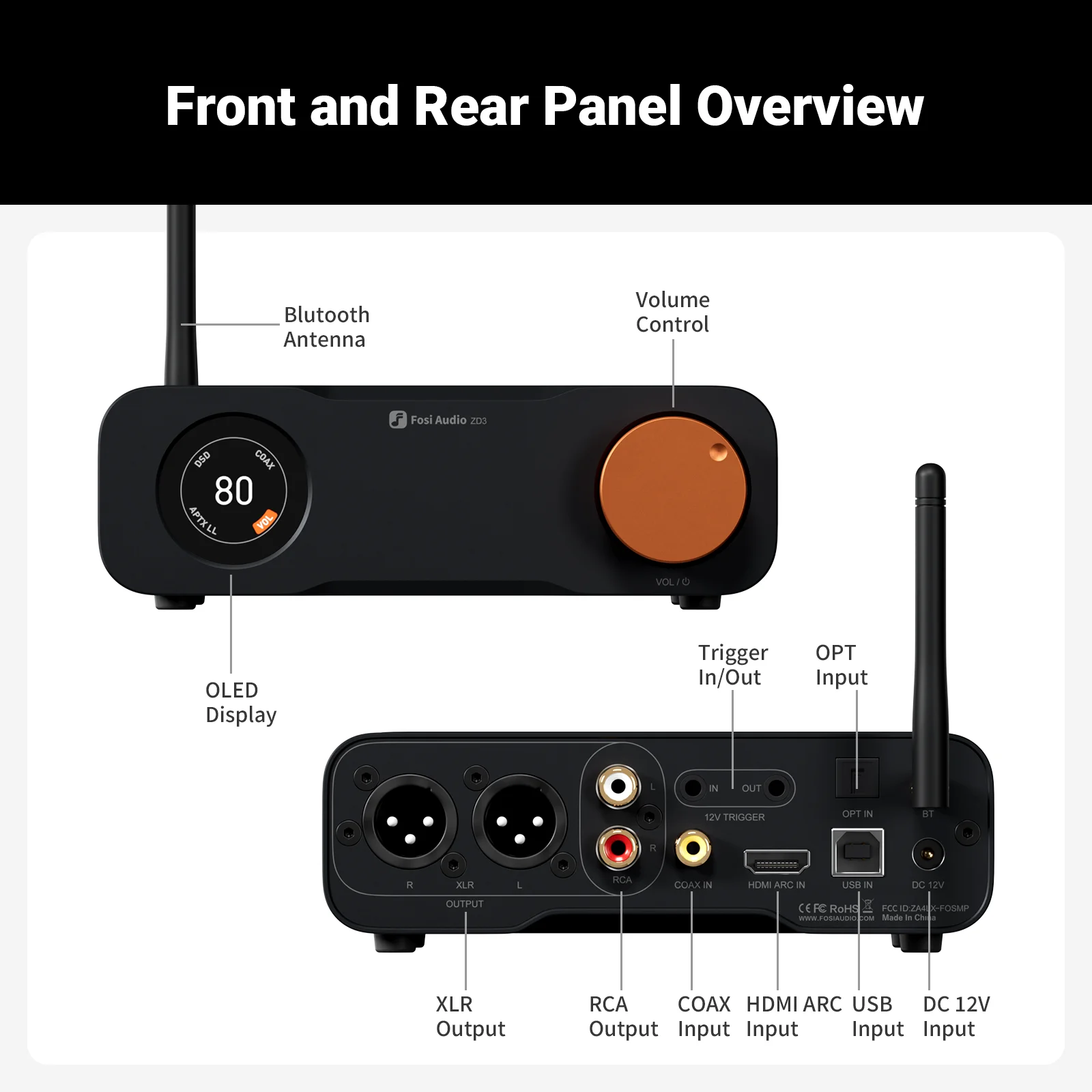

• Versatile & Flexible: The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios.

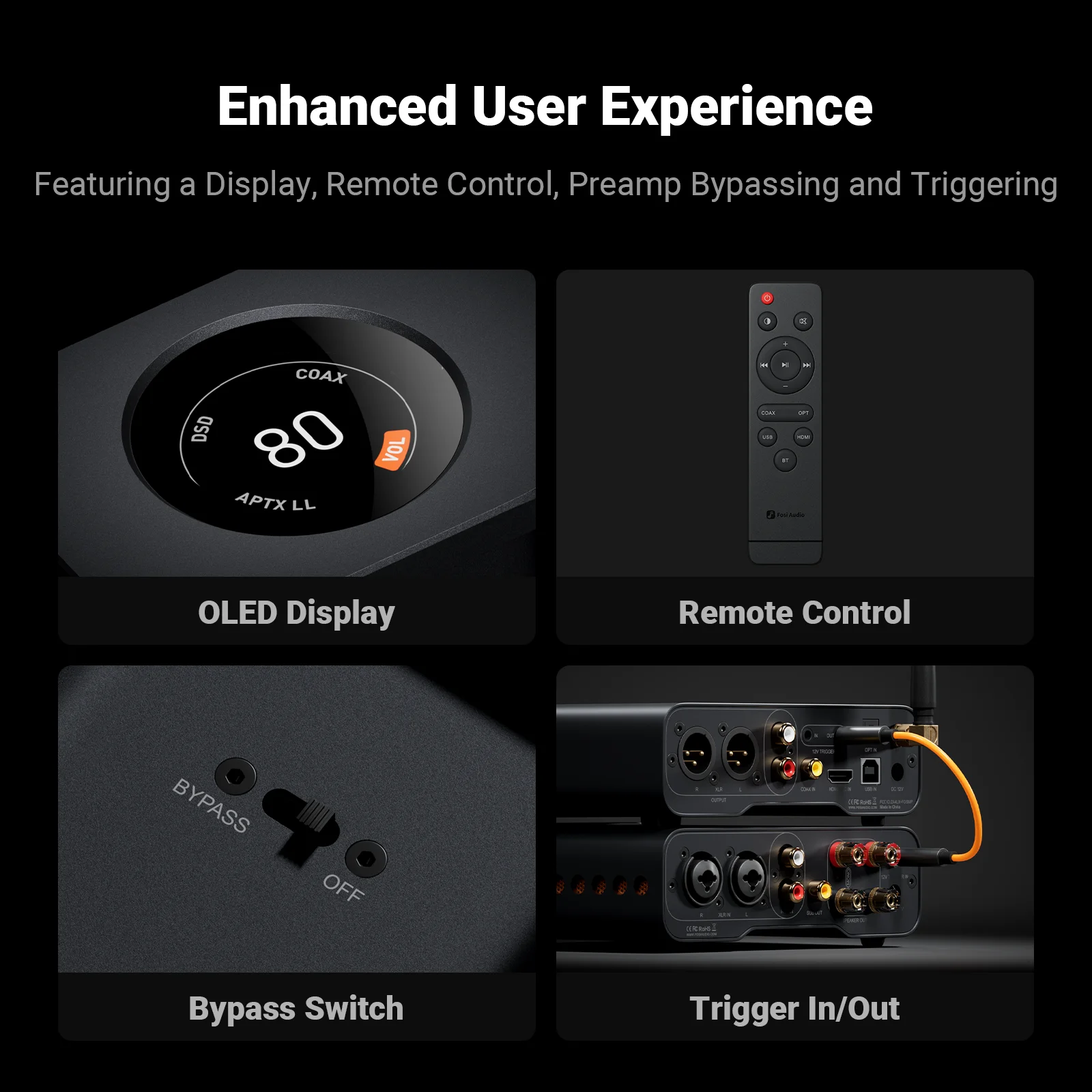

• Ease of Use: The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience.

• Family Design: Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system.

Feature:

• Chipset: XMOS XU316+ESS 9039Q2M+QCC3031+LME49720

• Maximum Sampling Rate

          USB:PCM 32bit/768kHz; DSD512

          OPT/COA: PCM 24bit/192kHz

          HDMI: PCM 24bit/192kHz;

          Bluetooth: PCM 24bit/48kHz;

• Output Level: XLR: 5Vrms/RCA: 2.5Vrms

• Input: USB, HDMI (ARC), Coaxial, Optical, Bluetooth

• Output: XLR, RCA


• SNR: 126dB


• THD+N: <0.00008%


• Dynamic Range: 126dB


• Noise Floor: ≤2μV


• Frequency Response: 20Hz-20kHz (±0.1dB)


• Bluetooth Version: 5.0


• Bluetooth Connection Distance: ≥13m

• Bluetooth Transmission Audio Format: SBC, AAC, aptX, aptX HD


• Input Voltage and Current: DC 12V 1.5A

• USB Compatible Devices:

• Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to subsequent instructions for details)
  Mac OS X, Linux (No driver required)

Package include

• ZD3*1

• USB-A to USB-B Cable*1

• 12V Power Adapter*1

• Bluetooth Antenna*1

• 12V Trigger Cable*1

• Infrared Remote*1

• User Manual*1
